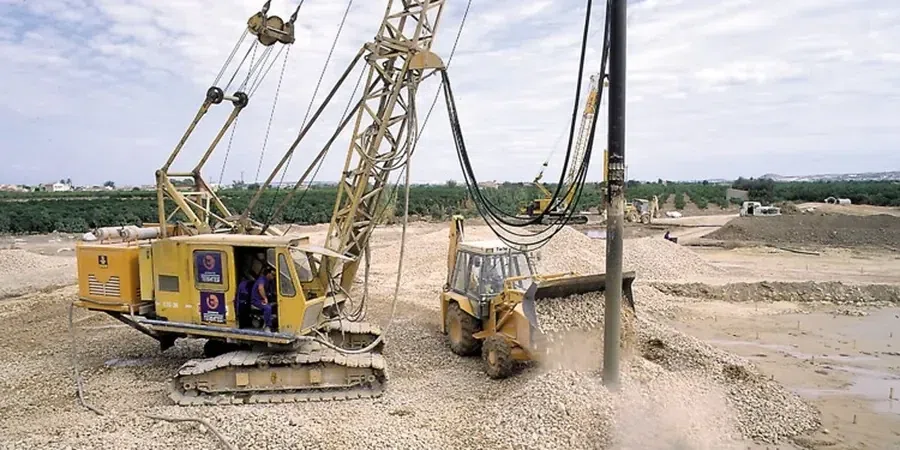

A crawler-mounted drill rig sits on a sandy clay lot near Battlefield Boulevard, setting up for a stone column test section. The vibratory probe penetrates the fill, displacing the loose material sideways as crushed stone is fed from the hopper. This is the core of stone column design in Chesapeake: a ground improvement method that densifies weak strata while creating vertical drainage paths. We calibrate the column spacing and diameter based on the soil profile encountered, using SPT data from adjacent borings. The goal is to reach a target relative density that meets the project's settlement criteria. Before specifying the stone column layout, a thorough site investigation must confirm the depth of compressible layers and the groundwater conditions.
Stone columns in Chesapeake's organic clays require a 25 to 35 percent area replacement ratio to reduce total settlements by half.
Approach and scope
- Determining column diameter (typically 0.8 to 1.2 m) based on vibroflot power and soil conditions
- Selecting spacing from 1.8 to 3.0 m in a triangular grid to achieve the required area replacement ratio
- Specifying stone gradation (ASTM D448 #57 or #67) to ensure adequate friction and drainage capacity
Site-specific factors
Chesapeake sits on the Atlantic Coastal Plain, where deep deposits of soft marine clay and organic silts extend up to 30 meters below surface. The water table often lies within 1.5 meters of grade, saturating the matrix and reducing effective stress during column installation. If the stone column design ignores the sensitivity of these clays, the vibroflot can cause remolding and a temporary loss of shear strength. This can lead to cavity collapse and incomplete stone replacement. A focused stone column design in Chesapeake must address the risk of bulging in the upper 3 meters, where lateral confinement is lowest. We model this using the Priebe method and calibrate against local case histories.
Relevant standards
ASTM D1586-18 (SPT for soil profiling), ASTM D2487-17 (Unified Soil Classification), FHWA NHI-05-037 (Ground Improvement guidelines), ASCE 7-22 (Minimum design loads for settlement evaluation)
Related technical services
Feasibility and Cost-Benefit Analysis
We compare stone columns against alternatives like deep soil mixing or preloading, considering local aggregate availability and disposal costs for excavated material.
Detailed Column Layout and Spacing Design
Using settlement criteria and bearing capacity targets, we determine the optimal grid pattern and stone volume for each zone of the project site.
Construction QA/QC and Verification Testing
We supervise test column installations on site, perform load tests to verify column stiffness, and adjust production parameters based on real-time vibroflot feedback.
Typical parameters
FAQ
What is the typical cost range for stone column design in Chesapeake?
Engineering design fees for stone column projects in Chesapeake generally range from US$1.540 to US$4.900, depending on site complexity, number of test columns, and reporting requirements. This does not include installation costs.
How deep can stone columns be installed in Chesapeake clay soils?
Vibroflots can reach up to 20 meters in the soft marine clays typical of Chesapeake, though practical depth is often limited to 12-15 meters when dense sand layers are encountered. The design depth is set where the column stress ratio becomes negligible.
What settlement reduction can I expect with stone columns in organic soils?
For Chesapeake organic silts and clays with an undrained shear strength of 20-40 kPa, a well-designed stone column grid with Ar = 25% typically reduces total settlement by 50-60% compared to untreated ground, based on local instrumented case studies.
