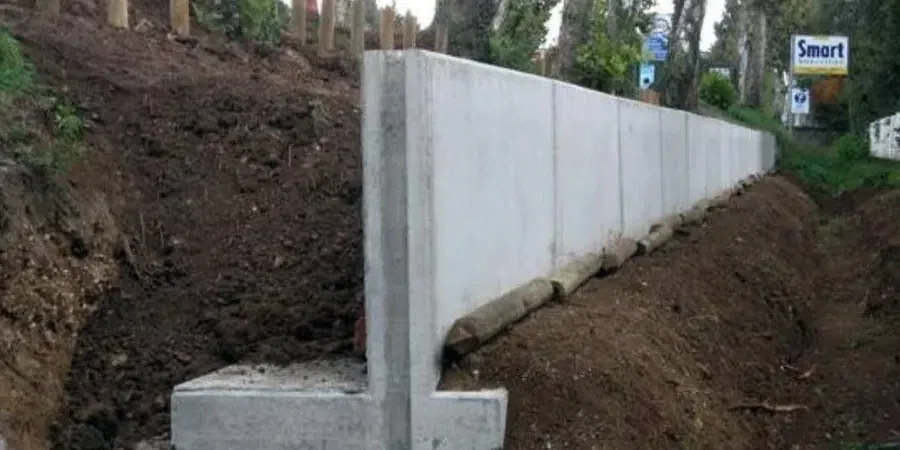

Retaining wall design in Chesapeake requires compliance with IBC and ASCE 7, but the real challenge is the region's geology. The city sits on the Atlantic Coastal Plain, where deep deposits of marine clay and sandy silt create variable bearing conditions. High groundwater tables are common near the Elizabeth River and the Dismal Swamp Canal, demanding proper drainage and hydrostatic pressure calculations. Before any wall is built, we recommend a geotechnical study to characterize soil stratigraphy and groundwater levels. This data feeds directly into the wall's stability analysis, ensuring it meets code requirements for both static and seismic loads. In our experience, the combination of soft clays and seasonal water level fluctuations makes Chesapeake one of the more demanding areas for retaining structures along the Mid-Atlantic.
The combination of soft clays and seasonal water level fluctuations makes Chesapeake one of the more demanding areas for retaining structures along the Mid-Atlantic.
Approach and scope
Site-specific factors
One thing we frequently point out to Chesapeake homeowners and contractors is that drainage behind the wall is often overlooked. Many existing walls in the city show signs of distress from hydrostatic pressure buildup after heavy rains. The clay soils here drain slowly, and if the backfill is not properly designed with a drainage composite or gravel blanket, water pressure can double the lateral load on the wall. Another local risk is frost heave in the top 18 inches of soil during cold snaps, which can shift a shallow footing. For walls over 6 feet in height, a proper drainage geotechnical design is essential to prevent long-term movement. We also see issues when walls are built too close to property lines without allowing for a proper slope or tieback zone behind the wall face.
Relevant standards
IBC 2021 (Chapter 18 – Soils and Foundations), ASCE 7-22 (Minimum Design Loads and Associated Criteria), ASTM D1586-18 (Standard Test Method for SPT), ASTM D2487-17 (Standard Classification of Soils for Engineering Purposes)
Related technical services
Geotechnical Investigation for Walls
We perform soil borings and test pits to determine soil strength, groundwater depth, and layering. Laboratory tests include triaxial compression and direct shear to obtain design parameters for the wall.
Wall Stability and Structural Design
Using software like MSEW and SLOPE/W, we check overturning, sliding, bearing capacity, and global slope stability. We provide stamped calculations for permit submittal in Chesapeake.
Drainage and Waterproofing Recommendations
Proper drainage extends wall life. We specify filter fabrics, perforated pipes, and granular backfill. For high water tables, we design weep holes and waterproofing membranes.
Typical parameters
FAQ
What is the typical cost for retaining wall design in Chesapeake?
The typical range for a residential retaining wall design in Chesapeake is between $1,080 and $4,790. This varies based on wall height, soil complexity, and the need for additional testing like triaxial or consolidation tests. We provide a fixed fee after the initial site visit and soil review.
How deep should the footing be for a retaining wall in Chesapeake clay soils?
For clay soils common in eastern Chesapeake, we recommend the footing depth be at least 24 inches below finished grade to avoid frost heave and to reach a more competent layer. In sandy western areas, 18 inches may suffice. A geotechnical investigation will confirm the appropriate depth based on bearing capacity and seasonal moisture changes.
Do I need a permit for a retaining wall in Chesapeake?
Yes, the City of Chesapeake requires a building permit for any retaining wall over 4 feet in height, or any wall that supports a surcharge. Our design package includes stamped calculations and soil reports that meet the city's submittal requirements. We also coordinate with the permit office to answer any technical questions during review.
