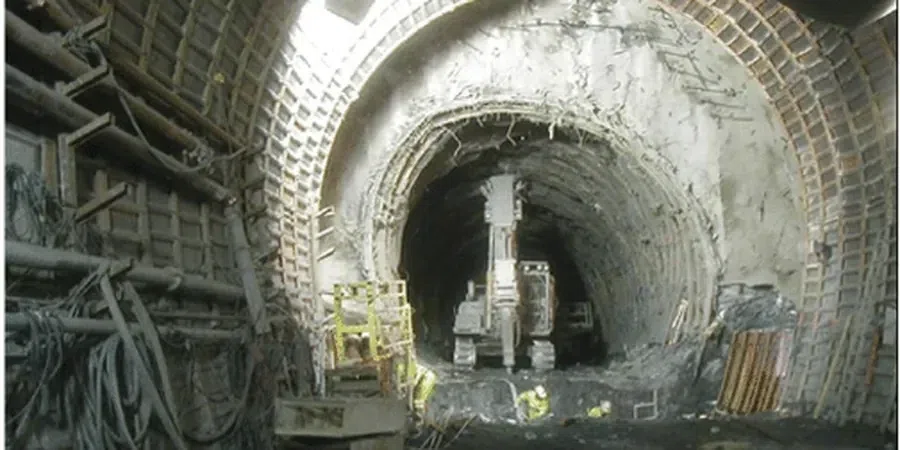

Chesapeake sits on deep deposits of marine clay, peat, and loose sand typical of the Atlantic Coastal Plain. When a light-rail alignment crossed the Dismal Swamp area, we saw firsthand how the soft organic clay could squeeze like toothpaste. The borehole logs showed water content above 80 percent in the upper 15 feet. That is not a forgiving material for tunnel excavation. We performed a full geotechnical analysis for soft soil tunnels to define the strength and deformation parameters. Without that data, the contractor would have faced sudden face collapse or excessive settlement. We combined undisturbed sampling with SPT testing to capture both the intact and remolded behavior. The results directly informed the choice of an earth-pressure-balance machine instead of an open-face shield.
In soft marine clays the undrained shear strength can drop to 300 psf, requiring full-face support systems and rigorous settlement monitoring during tunnel advance.
Approach and scope
Site-specific factors
IBC 2021 and ASCE 7-22 require site-specific ground motion parameters for underground structures in Chesapeake. The seismic design category ranges from C to D depending on the site class. Soft soils amplify long-period motions, which can cause tunnel linings to rack or buckle. The liquefaction potential of the loose sand layers beneath the clay is a real concern. We run the NCEER method using SPT blow counts and fines content to evaluate cyclic strength. In one project near the Elizabeth River, the analysis showed a factor of safety below 1.0 for a magnitude 6.5 event. That forced the design team to specify ductile segmental linings and ground improvement ahead of the face.
Service video
Relevant standards
IBC 2021 Chapter 18, ASCE 7-22 Chapter 11 (Seismic), ASTM D1586-18 (SPT), ASTM D2850-15 (CU Triaxial), FHWA-NHI-10-034 (Tunnel Manual)
Related technical services
Field Investigation & Sampling
We run a multi-phase drilling program with continuous sampling, SPT, and piezocone testing. The data defines stratigraphy, groundwater conditions, and undrained strength profiles for tunnel design.
Numerical Modeling & Risk Assessment
We build 2D and 3D finite-element models using Plaxis 2D and FLAC3D. The simulations predict ground movements, lining forces, and face stability. We also prepare liquefaction and settlement hazard maps for the corridor.
Typical parameters
FAQ
How deep should boreholes be for a soft soil tunnel in Chesapeake?
Boreholes must extend at least two tunnel diameters below the invert. For a 20-foot diameter tunnel we drill to 40 to 50 feet below the proposed invert. If deep sand layers exist we go deeper to check for artesian conditions.
What is the cost range for a geotechnical analysis for soft soil tunnels in Chesapeake?
The typical range is US$4.810 to US$14.910 depending on the number of boreholes, lab tests, and numerical modeling. A corridor with high liquefaction risk or deep peat layers falls at the upper end.
How do you handle peat layers during tunnel excavation?
Peat has very low strength and high compressibility. We recommend ground improvement using deep soil mixing or jet grouting ahead of the face. The analysis must account for creep and long-term consolidation settlements that can crack the lining.
Which ASTM standards apply to soil testing for tunnel design?
ASTM D1586 for SPT, ASTM D2850 for CU triaxial, ASTM D2435 for one-dimensional consolidation, and ASTM D4318 for Atterberg limits. For cyclic loading we also run ASTM D5311 for cyclic triaxial tests.
