Contractors in Chesapeake often assume standard trench drains will handle the region's groundwater. The mistake is ignoring how the low-permeability clay and silt layers beneath most of the city—especially around the Southern Branch of the Elizabeth River—create perched water tables that saturate subgrades unpredictably. Without proper geotechnical drainage design, water builds up behind retaining walls, under slabs, and along cut slopes, leading to hydrostatic pressure that cracks pavements and destabilizes foundations. A site-specific drainage strategy that accounts for local soil stratification is not optional; it is the difference between a structure that sheds water and one that traps it.
Low-permeability clay layers beneath Chesapeake can create perched water tables that saturate subgrades without warning, cracking pavements and destabilizing foundations.
Approach and scope
Site-specific factors
The main risk in Chesapeake is underestimating how long water remains in the soil after a heavy rain. The region's clay soils drain slowly, and without a properly designed drainage blanket or edge drain system, pore pressures can stay elevated for days. That sustained pressure reduces the effective stress in the soil, lowering bearing capacity under footings and increasing the likelihood of differential settlement. In cuts and excavations, water that cannot escape quickly can turn a stable slope into a creeping failure within a single wet season. The geotechnical drainage design must include both surface interception and subsurface collection to keep the water moving away from the structure.
Relevant standards
ASCE 7-22 (Chapter 3: Flood Loads, Chapter 10: Site-Specific Groundwater), ASTM D2434-19 (Permeability of Granular Soils), ASTM D5084-16a (Hydraulic Conductivity of Saturated Porous Materials), IBC 2021 (Section 1805: Foundation Drainage)
Related technical services
Subsurface Drainage Layout and Sizing
We calculate pipe diameters, trench widths, and filter gradations based on the measured soil permeability and the expected inflow from the contributing drainage area. The design includes cleanout locations and outlet invert elevations that match the site's stormwater management plan.
Slope and Retaining Wall Drainage Integration

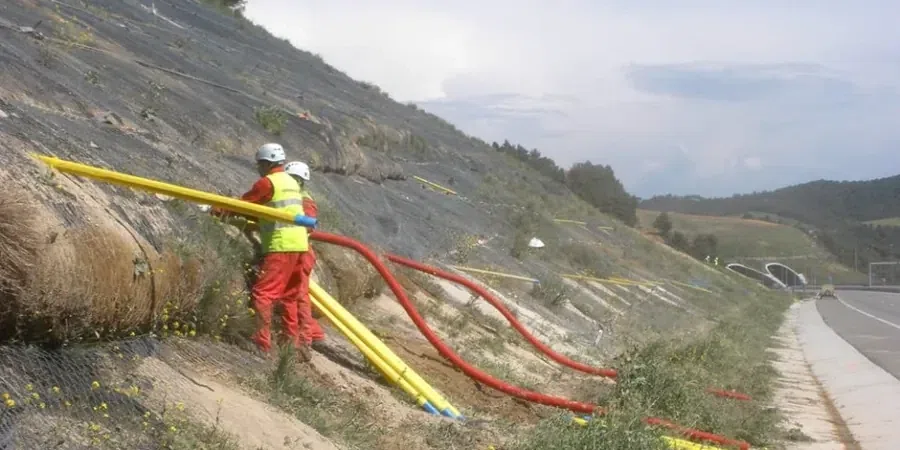

For cut slopes and retaining walls, we specify chimney drains, horizontal drains, or geocomposite strip drains that relieve pore pressure behind the wall face. The system is coordinated with the wall's structural design to prevent hydrostatic loads from exceeding the wall capacity.
Typical parameters
FAQ
What is the typical cost range for a geotechnical drainage design in Chesapeake?
For a standard residential or light commercial site in Chesapeake, the design fee typically ranges between US$750 and US$2,360. The final price depends on the number of drainage zones, the complexity of the soil layering, and whether a full infiltration test is required.
How does the Chesapeake clay affect the drainage design approach?
Chesapeake's marine clay has a very low saturated hydraulic conductivity, often below 10⁻⁶ cm/s. That means water moves through it extremely slowly, so the drainage system must rely on interception rather than percolation. We use wider trench widths, larger-diameter perforated pipes, and a thick sand or gravel envelope to create a preferential flow path that the clay cannot provide naturally.
Does the drainage design need to comply with Chesapeake's stormwater ordinance?
Yes. The city's stormwater management ordinance requires that any subsurface drainage system be designed to handle the 10-year, 24-hour storm event without causing off-site flooding. Our designs include a hydraulic analysis that demonstrates compliance with the ordinance's peak flow and volume control requirements.
