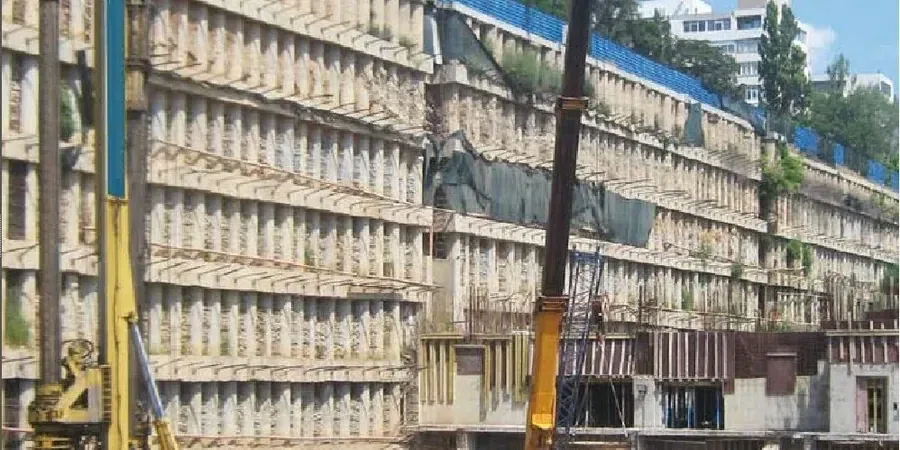

On our first Chesapeake project, we unloaded a hydraulic grab rig near the Elizabeth River and immediately hit stiff clay over loose sand — the classic Tidewater profile. For diaphragm wall design in Chesapeake, we run continuous trenching under bentonite slurry, cutting panels up to 30 m deep. The rig’s clamshell bites into the soil, and we monitor trench stability with real-time inclinometers. Before mobilizing, we always correlate the soil log with a georadar survey to map buried utilities and old fill. That step alone saves days of rework.
A single 800-mm panel in Chesapeake can cut water inflow by 95% compared to traditional soldier pile and lagging systems.
Approach and scope
Site-specific factors
The humidity and high water table in Chesapeake push the risk of trench collapse if the bentonite level drops even 200 mm. We also see thin sand lenses that can cause sudden slurry loss. A localized loss of circulation can soften the subgrade under the adjacent panel. That is why we perform a full pumping test before the first panel and keep a spare clay stockpile on site. The tidal influence from the Southern Branch of the Elizabeth River adds another variable — we schedule the tremie pour at low tide to reduce hydrostatic pressure on the green concrete.
Relevant standards
ASCE 7-16 (Minimum Design Loads for Buildings), IBC 2021 (International Building Code, Chapter 18), ACI 318-19 (Building Code Requirements for Structural Concrete), FHWA Geotechnical Engineering Circular No. 2 (Earth Retaining Structures)
Related technical services
Structural Design and Detailing
Reinforced concrete panel design per ACI 318, including bending, shear, and crack-width checks. We size the cage and specify couplers at construction joints.
Slurry and Trench Stability Analysis
Bentonite mix design, density and viscosity control, plus trench stability calculations using the equilibrium method. We verify against local sand layer collapse.
Water Cut-Off and Seepage Control
Panel joint design with waterstops, jet grouting behind the wall at weak zones, and backup drainage systems. We model steady-state seepage with SEEP/W.
Typical parameters
FAQ
What soil conditions in Chesapeake require a diaphragm wall instead of sheet piles?
When you hit thick layers of soft clay or loose sand below the water table — typical in the Indian River and Deep Creek areas — sheet piles lose toe resistance and vibrate excessively. A diaphragm wall provides a rigid structural element that resists both lateral earth pressure and hydrostatic uplift.
How deep can a diaphragm wall go in Chesapeake's coastal geology?
We have installed panels to 28 m in the Yorktown Formation. The practical limit here is about 30 m because deeper trenches require heavier grabs and higher bentonite volumes. Below that depth, you start hitting the Miocene marl layer, which requires rock sockets or alternative methods.
What is the typical construction schedule for a diaphragm wall in Chesapeake?
For a 200 m long, 18 m deep wall with 800 mm panels, plan on 8 to 12 weeks. That includes mobilization, guide wall construction, trenching, concreting, and curing. Weather delays from nor'easters in fall and winter can add 2 to 3 weeks.
How much does diaphragm wall design cost in Chesapeake?
Engineering design fees generally range from US$1,690 to US$7,520 depending on wall length, depth, and reinforcement complexity. That covers structural calculations, stability analysis, and construction drawings. Full-scale installation costs are separate and depend on site access and slurry disposal.
