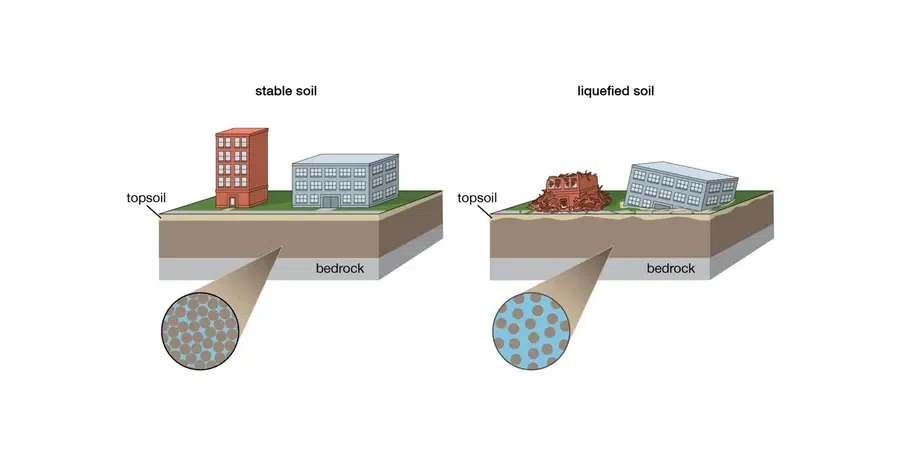

Many contractors in Chesapeake assume that the sandy soils underlying most of the city are simply compact and stable. That assumption can be dangerous. Chesapeake sits on the Atlantic Coastal Plain, where loose saturated sands and silts dominate the upper 30 feet. During a seismic event, these deposits can lose shear strength almost instantly. A proper soil liquefaction analysis identifies the cyclic stress ratio and the corrected blow count before anyone pours a footing. Without it, you risk differential settlement that cracks slabs and shifts foundations. We combine SPT data with the Youd-Idriss 2001 procedure to calculate the factor of safety against liquefaction for every borehole. This city’s shallow water table makes the analysis non-negotiable for any structure in a moderate-to-high seismic zone. We also cross-check results with the cyclic resistance ratio from laboratory cyclic triaxial tests when the project demands higher confidence. That level of detail separates a safe design from a gamble.
A factor of safety below 1.1 in the top 20 meters means the soil profile is susceptible to liquefaction under the design earthquake.
Approach and scope
Site-specific factors
Chesapeake sits within ASCE 7 seismic hazard category C for most of the city, with Site Class D or E soils common near the waterways. That combination creates a real liquefaction risk when the water table is high. The International Building Code (IBC 2021) requires an evaluation of liquefaction potential for any structure in these conditions. We follow the NCEER workshop guidelines and the FHWA NHI-05-037 manual to compute the factor of safety against liquefaction. If the FS drops below 1.2, the foundation design must account for post-liquefaction strength loss. This is not a theoretical exercise — it protects against structural damage during a low-probability, high-consequence event. Ignoring the analysis leaves the building vulnerable to tilting, sinking, or even overturning in loose saturated sands.
Relevant standards
ASCE 7-22 (Seismic Loads & Site Class), IBC 2021 (Chapter 18 – Soils & Foundations), ASTM D1586-18 (SPT standard), Youd & Idriss (2001) NCEER summary report, FHWA NHI-05-037 (Liquefaction evaluation)
Related technical services
SPT-Based Liquefaction Assessment
Standard penetration testing at 5-ft intervals with energy correction, fines content determination, and CRR calculation per the NCEER method. Delivered with a factor-of-safety profile and a liquefaction potential index map for the entire borehole log.
Cyclic Triaxial Laboratory Testing
Undisturbed thin-walled tube samples tested under cyclic loading to measure pore pressure generation and strain accumulation. Results provide a direct cyclic resistance ratio for critical layers, bypassing the empirical SPT-based correlations.
Typical parameters
FAQ
What is the typical cost for a full liquefaction analysis in Chesapeake?
A standard SPT-based liquefaction analysis for a residential or light commercial project in Chesapeake ranges between $2,840 and $4,810. This includes drilling, sampling, laboratory fines content tests, and the complete NCEER-based evaluation with factor-of-safety profiles. Large projects with multiple borings or cyclic triaxial testing fall at the higher end.
How deep must borings go for a reliable liquefaction assessment?
We drill to at least the depth where the computed cyclic stress ratio drops below the cyclic resistance ratio, or to a minimum of 60 feet in Chesapeake’s coastal plain deposits. The critical zone is usually between 10 and 40 feet, where loose sands and silts are saturated. Deeper borings are needed if a thick clay cap is present, because the underlying sand could still liquefy.
What design earthquake magnitude does the analysis assume?
We use the DE (design earthquake) per ASCE 7-22 for Chesapeake, which typically corresponds to a moment magnitude M6.7 to M7.2 with a 2% probability of exceedance in 50 years. The peak ground acceleration is scaled to 0.15g–0.25g depending on the site class. We also run a sensitivity check for a M5.5 event to evaluate the threshold of cyclic failure.
Can liquefaction occur in Chesapeake even during a small earthquake?
Yes, it is possible. Loose clean sands with a corrected (N1)60 below 10 and a water table within 10 feet of the surface can liquefy under a M5.5 earthquake if the cyclic stress ratio exceeds the cyclic resistance ratio. In Chesapeake, the shallow water table and low-density fill zones make even moderate shaking a concern. The factor of safety must be checked against the full range of credible magnitudes.
