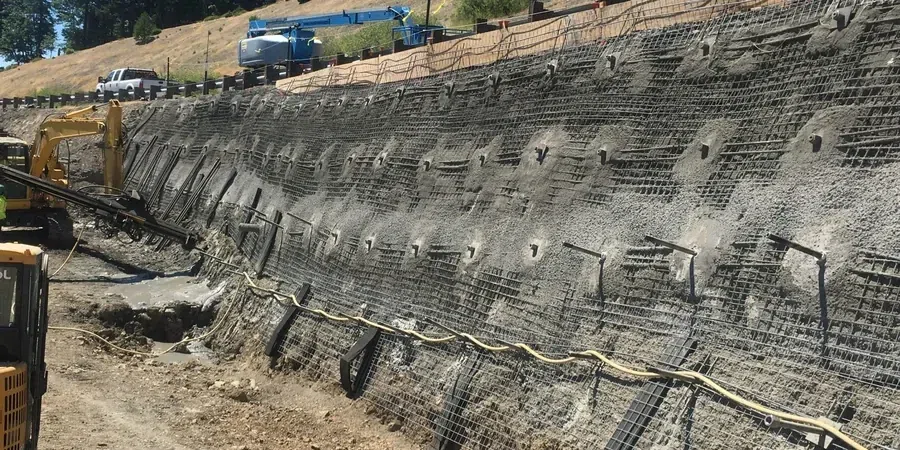

In Chesapeake, the transition from upland terraces to low-lying floodplains creates a constant challenge for slope stability. We see it most often on residential developments near the Southern Branch Elizabeth River or along the Dismal Swamp Canal, where sandy soils overlie clay layers that act as slip planes when saturated. A proper slope stabilization design in Chesapeake must account for this layered stratigraphy and the seasonal water-table fluctuations that reduce effective stress. In our practice, we start with a thorough subsurface exploration guided by FHWA-NHI-05-095 and follow it with limit-equilibrium or finite-element analyses to define the factor of safety. Where the margin is insufficient, we combine drainage improvements with a geotechnical drainage system to control pore pressures before considering structural reinforcement.
A factor of safety below 1.3 in Chesapeake's wet coastal plain is a signal to redesign before the first storm hits.
Approach and scope
- Topographic survey and soil profiling to identify critical failure surfaces
- Steady-state and transient seepage analysis using SEEP/W or similar
- Reinforcement design with geosynthetics, soil nails, or tieback anchors as needed
Site-specific factors
A common scenario we encounter in Chesapeake is a 6-meter cut slope on a commercial site near Battlefield Boulevard that fails during a wet spring. The topsoil is underlain by silty sand with an apparent cohesion that vanishes once the water table rises. Without a stabilization design that includes drainage trenches and a reinforced soil mass, the slope can creep and eventually collapse, endangering adjacent parking lots and utilities. The lesson is clear: in this region, you cannot treat slope stabilization as a simple grading exercise. A proper design for Chesapeake must account for the groundwater regime and the low plasticity of the natural soils.
Relevant standards
FHWA-NHI-05-095 (Slope Stability Reference Manual), ASCE 7-16 (Minimum Design Loads, including seismic earth pressures), ASTM D7181 (Consolidated Drained Triaxial Test for shear strength parameters)
Related technical services
Subsurface Investigation & Soil Testing
Boreholes, test pits, and laboratory testing (triaxial, direct shear, compaction) to characterize the soil profile and obtain strength parameters for design.
Seepage & Stability Modeling
Steady-state and transient seepage analyses coupled with limit-equilibrium or finite-element slope stability models to evaluate failure mechanisms and optimize drainage.
Reinforced Slope Design
Design of mechanically stabilized earth (MSE) walls, soil nail walls, geogrid-reinforced slopes, and tieback anchor systems to achieve the required factor of safety.
Construction Support & Monitoring
Review of contractor submittals, field observation during installation, and post-construction monitoring with inclinometers and piezometers to verify design performance.
Typical parameters
FAQ
What is the typical factor of safety used for slope stabilization design in Chesapeake?
For permanent slopes under static conditions, we target a factor of safety of 1.3 to 1.5. For temporary cuts or seismic loading per IBC, we accept values between 1.1 and 1.2. These thresholds follow FHWA-NHI-05-095 and local practice for the coastal plain.
How much does a slope stabilization design cost in Chesapeake?
The cost for a full design package — including site investigation, laboratory testing, modeling, and construction documents — typically falls between US$1.570 and US$5.640. The final figure depends on slope height, soil conditions, and the complexity of the reinforcement system.
What causes slope failures most often in Chesapeake?
The primary cause is elevated pore water pressure after heavy rain, combined with the low shear strength of the silty sands and interbedded clays found in the region. Poor surface drainage and undercutting during construction are also common triggers.
Do I need a geotechnical engineer for a small residential slope in Chesapeake?
Yes, even a 3-meter cut can become unstable when the water table rises. A geotechnical assessment will identify the risk and recommend cost-effective measures such as a French drain or a simple reinforced soil section, often saving thousands in future repair costs.
How long does the design process take from start to finish?
A typical residential or small commercial slope stabilization design in Chesapeake takes 3 to 5 weeks. This includes 1–2 weeks for drilling and laboratory testing, followed by 1–2 weeks for modeling and report preparation. Larger or more complex projects may require additional time.
