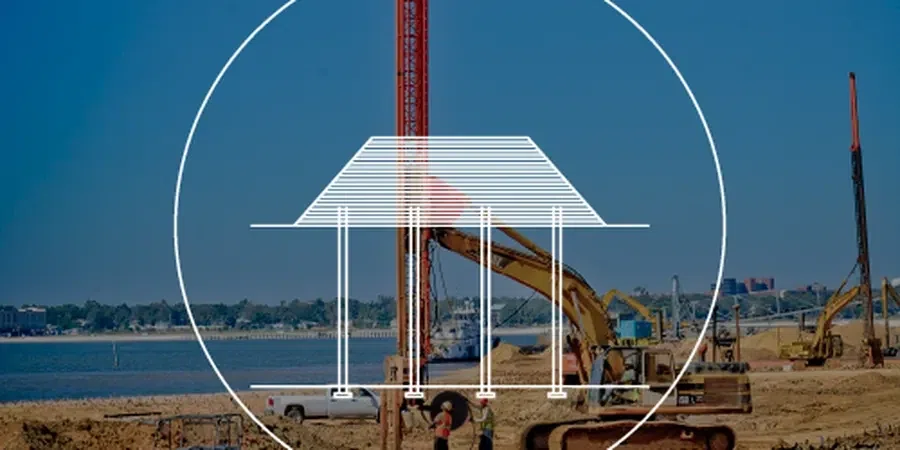

Chesapeake sits on the Coastal Plain of Virginia, where elevations rarely exceed 30 feet above sea level and the water table is often just a few feet below the surface. The city covers over 340 square miles of low-lying terrain, much of it underlain by soft estuarine and marine deposits from the ancient Suffolk Scarp. For any project that involves filling or surcharging on these compressible soils, prefabricated vertical drain (PVD) design becomes essential to accelerate consolidation and prevent long-term settlement. Before specifying drain spacing or depth, we typically run a classification of soils to identify clay and silt layers, and we check consolidation parameters to predict how fast the pore pressure will dissipate under load.
In Chesapeake's saturated clays, PVDs can cut consolidation time from years to months, but only if spacing and filter compatibility are checked against local soil properties.
Approach and scope
Site-specific factors
The geology under Chesapeake consists of the Yorktown Formation and the deeper Chesapeake Group, which include stiff to very stiff clays but also loose sands and soft organic silts in paleochannels. Groundwater is typically encountered between 2 and 8 feet deep, and seasonal fluctuations can reach 3 feet. If a PVD design ignores the presence of thin sand seams within the clay, the horizontal drainage may be underestimated, leading to slower than expected consolidation. Conversely, if the filter fabric is not matched to the local soil grain size distribution, clogging can reduce drain efficiency by 50% or more over the first year.
Relevant standards
ASTM D6918 – Standard Test Method for Testing Vertical Strip Drains in the Laboratory, ASTM D4491 – Standard Test Methods for Water Permeability of Geotextiles by Permittivity, FHWA NHI-14-007 – Design and Construction of Prefabricated Vertical Drains
Related technical services
Soil Investigation & Parameter Selection
We conduct CPTu soundings and undisturbed sampling to measure the horizontal coefficient of consolidation, the smearing zone effect, and the filter compatibility requirements for the specific clay deposits found in Chesapeake.
Drain Layout & Surcharge Optimization
Using finite-element consolidation models, we determine the optimal drain spacing, depth, and surcharge height to achieve the required post-construction settlement within the project schedule, while minimizing material costs.
Typical parameters
FAQ
How much does PVD design typically cost for a project in Chesapeake?
For a typical commercial or residential site in Chesapeake, the design and analysis fee ranges between US$950 and US$2,670, depending on the number of soil borings, the complexity of the stratigraphy, and whether a full finite-element model is required. This includes parameter interpretation, drain spacing calculations, and a written report.
What soil conditions in Chesapeake make PVDs necessary?
Chesapeake has large areas of soft clay and organic silt from ancient tidal marshes and floodplains. These soils have low permeability (k < 10⁻⁷ cm/s) and high compressibility. Without prefabricated vertical drains, primary consolidation under a 10-foot fill could take 5 to 10 years; with properly designed PVDs, that same consolidation can be achieved in 6 to 12 months.
How long does it take to install PVDs on a typical Chesapeake site?
Installation time depends on the number of drains and site access. For a 2-acre site with drains on a 1.5-meter triangular grid, a single rig can install all drains in 5 to 10 working days. The subsequent consolidation monitoring period then lasts several months, during which we measure pore pressure dissipation and settlement.
