Driven Pile Design in Chesapeake – Geotechnical Expertise for Deep Foundations

We worked on a 14-story residential tower near the Elizabeth River where the upper 20 feet consisted of loose sand and soft clay over a dense sand layer. Getting the pile capacity right required more than a simple bearing calculation. Chesapeake’s proximity to the Atlantic Coastal Plain means the soil profile varies sharply within a block. Driven pile design in Chesapeake must account for both end-bearing in the deep sands and skin friction losses in the interbedded slits. For that project we integrated the ensayo triaxial data to calibrate the shaft resistance parameters before finalizing the driving criteria.

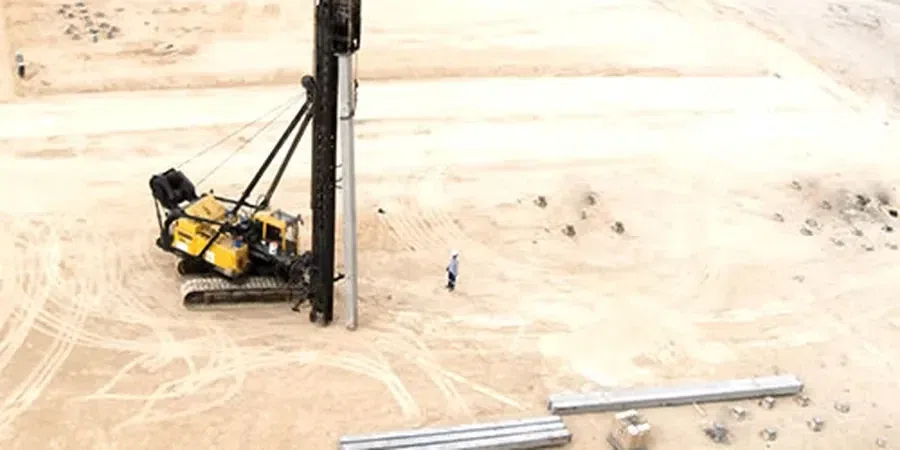

Illustrative image of Driven pile design in Chesapeake
In Chesapeake, the water table and interbedded geology make driven pile design a calibration problem, not a lookup-table exercise.

Approach and scope

Chesapeake’s groundwater table sits at 4 to 8 feet below grade across most of the city. That changes how we model pore pressure during pile driving. We use a combination of static analysis and wave equation simulations to predict driveability and structural stresses. The local geology features the Yorktown Formation with stiff clay layers that can cause refusal if the hammer energy is not matched correctly. A capacidad de carga study from the same borehole data helps us separate toe resistance from side friction. Our team applies the following methods:
  • Alpha and beta methods for clay and sand layers respectively
  • CAPWAP analysis on test piles for dynamic measurements
  • ASCE 7-16 load combinations for factored design

Site-specific factors

Chesapeake expanded rapidly from the 1980s onward, filling former wetlands and agricultural land. Many sites now contain compressible organic layers 2 to 4 meters thick that were never properly characterized. Driven pile design in Chesapeake must address the risk of negative skin friction when these layers consolidate under fill loads. Scour is another concern near the Intracoastal Waterway. We model end-bearing reliability using a lower-bound approach to keep safety factors consistent with ASCE 7-16.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.sbs

Relevant standards

IBC 2018 Chapter 18, ASCE 7-16 Minimum Design Loads, ASTM D1586-18 (SPT), ASTM D3966-19 (Pile Load Testing), ACI 543R-12 (Design of Concrete Piles)

Related technical services

01

Pile Capacity Analysis and Drivability Study

Bearing capacity calculation using static formulas and wave equation analysis. Includes GRLWEAP simulations, CAPWAP correlation, and a drivability report with recommended hammer size and cushion thickness.

02

Dynamic and Static Load Test Supervision

On-site supervision of PDA and static load tests per ASTM D1143. We interpret the data to refine design parameters and confirm that each production pile meets the factored resistance criteria.

Typical parameters

ParameterTypical value
Maximum axial load (service)1.200 kN
Minimum embedment depth18 m
Ultimate shaft resistance (clay)40 - 110 kPa
Ultimate toe resistance (dense sand)4 - 8 MPa
Hammer energy for test pile40 - 100 kJ
Allowable settlement15 mm

FAQ

How does the high water table in Chesapeake affect driven pile design?

Shallow groundwater reduces effective stress in the upper sand layers, lowering shaft resistance in the top 6 meters. We use effective stress analysis with corrected N-values to avoid overestimating capacity. Pore pressure dissipation during driving is also modeled to prevent liquefaction in loose sands.

What is the typical cost range for driven pile design in Chesapeake?

The cost varies between US$1,100 and US$4,810 depending on the number of borings, test piles, and required dynamic analyses. A basic study with two boreholes and a wave equation run falls at the lower end; full CAPWAP and static load test packages reach the upper range.

Which soil layers in Chesapeake provide the most reliable end-bearing for driven piles?

The deep dense sand of the Pliocene Yorktown Formation is the primary bearing stratum, typically encountered between 18 and 25 meters. It has blow counts above 50 and provides ultimate toe resistances of 6 to 8 MPa. Stiff clay lenses above it offer secondary resistance but should not be relied upon as the sole bearing layer.
